Documented line_ingredients module. More...

#include "header.h"

Include dependency graph for line_ingredients.c:

Functions
struct Line *	Line_alloc_init (struct Cosmology *Cx, long line_type, size_t npoints_interp, double M_min, long mode_mf)
	Allocate the memory and initialize the the line structure. More...

int	Line_free (struct Line *Lx)
	Free the line structure. More...

int	Line_evaluate (struct Line Lx, double zz, double *res)
	Allocate the memory and initialize the the line structure. More...

double	mult_func (double sigma, long mode_mf)
	Compute the multiplicity function needed to compute the halo mass function Three models are implemented: Press-Schechter, Sheth-Tormen and Tinker see Pillepich et al arxiv: 0811.4176 for the expressions. More...

double	mass_func (struct Cosmology *Cx, double M, double z, long mode_mf)
	Compute the halo mass function for Press-Schechter, Sheth-Tormen and Tinker models see Pillepich et al arxiv: 0811.4176 for the expressions. More...

double	mass_func_sims (struct Cosmology *Cx, double M, double z, long mode_mf)
	Read in the measured mass function of Hidden-valey sims and build an interpolator for HMF(M) for a fixed redshift. More...

void	halo_bias (struct Cosmology Cx, double M, double z, long mode_mf, double bias_arr)
	computes the halo biases for three mass functions, press-schecter, Sheth-Tormen, and Tinker mass functions More...

void	logSFR_Behroozi_read (double z_arr, double logM_arr, double *log10SFR)
	Read in the file for the star formation rate byy Behroozi et al 2013. More...

int	logSFR_alloc_init ()
	Allocate memory and initialize the 2d interpolator for the star formation rate of Behroozi et al 2013 as a function of halo mass and redshift. More...

int	SFR_Behroozi_free ()
	Free the memory allocated to the interpolators of star formation rate by Behroozi et al 2013. More...

double	logSFR_Behroozi (double logM, double z)
	Evaluate the SFR interpolator object for a given value of mass and redshift. More...

double	luminosity (double M, double z, long mode_lum)
	Compute the line specific luminosity in unit of solar luminosity For CO ladder, I am using the fits in Table 4 of Kamenetzky et al. More...

int	mass_moment1_integ (unsigned nd, const double x, void p, unsigned fdim, double *fvalue)
	The integrand function passed to hcubature integrator to compute the first moment of line luminosity. More...

double	mass_moment1 (struct Cosmology *Cx, double z, double M_min, long mode_mf, long mode_lum)
	Compute the first luminosity moment. More...

int	mass_moment2_integ (unsigned nd, const double x, void p, unsigned fdim, double *fvalue)
	The integrand function passed to hcubature integrator to compute the second moment of line luminosity. More...

double	mass_moment2 (struct Cosmology *Cx, double z, double M_min, long mode_mf, long mode_lum)
	Compute the second luminosity moment. More...

int	bias_lum_weighted_integ (unsigned nd, const double x, void p, unsigned fdim, double *fvalue)
	The integrand function passed to hcubature integrator to compute the un-normalized luminosity-weighted line bias. More...

void	bias_lum_weighted (struct Cosmology Cx, double z, double M_min, long mode_mf, long mode_lum, double result)
	Compute the luminosity-weighted linear and quadratic line biases. More...

double	p_sig_shot_integrand (double x, void *par)
	The integrand function passed to qags integrator to compute the scatter in shot ala Keating 2016. More...

double	p_sig_shot (double scatter)
	Compute the scatter in shot noise due to scatter in luminosity-halo mass relation, assume log-normal scatter ala Keating Note that we set f_duty =1 unlike other LIM paper (ex. More...

double	p_sig_Tbar_integrand (double x, void *par)
	The integrand function passed to qags integrator to compute the scatter in Tbar ala Keating 2016. More...

double	p_sig_Tbar (double scatter)
	Compute the scatter in Tbar due to scatter in luminosity-halo mass relation, assume log-normal scatter ala Keating Note that we set f_duty =1 unlike other LIM paper (ex. More...

void	line_bias (struct Line Lx, double z, double result)
	Compute the linear and quadratic line biases, accounting ffor the normalization w.r.t. More...

double	mean_intens (struct Cosmology *Cx, size_t line_id, double z)
	Compute the line mean intensity in unit of erg Mpc^-2 Sr^-1. More...

double	Tbar_line (struct Cosmology *Cx, size_t line_id, double z)
	Compute the mean brightness temprature of CO in unit of microK, compared with Pullen et al and Lidz et al 2011. More...

Detailed Description

Documented line_ingredients module.

This module includes functions that are needed for computing the line clustering and shot contributions.

Azadeh Moradinezhad Dizgah, November 4th 2021

In summary, the following functions can be called from other modules:

Line_alloc_init() allocate memory and initizlized the line structure which contains 4 interpolators for first and second mass moments and linear and quadratic line biases.
Line_free() frees the memory allocated to line structure
Line_evaluate() evaluates the interpolators initialized in Line_alloc_init()
mult_func() computes the multiplicity function needed for computing the halo mass function
mass_func() computes the halo mass finction. Three options are available, Press-Schecter, Sheth-Tormen, Tinker
mass_func_sims() reads in the measured mass function on Hidden-Valley simulations by Farnik, and convert it to compare with the theoretical predictions
halo_bias() computes the halo biases assuming the above theoretical predictions of the halo mass function
logSFR_Behroozi_read() reeds in the data file of Behroozi 2013 for SFR(M,z)
logSFR_alloc_init() allocates memory for 2d interpolator of logSFR(M,z)
SFR_behroozi_free() frees the memory allocated to logSFR interpolator
logSFR_Behroozi() evaluates the logSFR_Behroozi interpolator
luminosity() computes the line luminosity
mass_moment1() computes the first mass moment
mass_moment2() computes the first mass moment
bias_lum_weighted() computes the luminosity-weighetd line bias
p_sig_shot() computes the coefficient accounting for the scatter in L(M) in shot noise
p_sig_Tbar() computes the coefficient accounting for the scatter in L(M) in mean brightness temprature
mean_intens() compues the mean intensity of the line
Tbar_line() compues the mean brightness temprature of the line

Function Documentation

◆ bias_lum_weighted()

void bias_lum_weighted	(	struct Cosmology *	Cx,
		double	z,
		double	M_min,
		long	mode_mf,
		long	mode_lum,
		double *	result
	)

Compute the luminosity-weighted linear and quadratic line biases.

The normalization of first mass moment is not included yet. The function bias_lum_weighted_integ() is the integrand and bias_lum_weighted() computes the bias

Parameters

Cx	Input: pointer to cosmology structure
z	Input: redshift
M_min	Input: minimum halo mass
mode_mf	Input: model of halo mass function to consider, PSC, ST, TR
mode_lum	Inpute: which luminosity model, basically which line considered
result	Input: an output array of linear and quadratic line biases

Returns: un-normalized line bias

In units of solar mass;

In units of solar mass

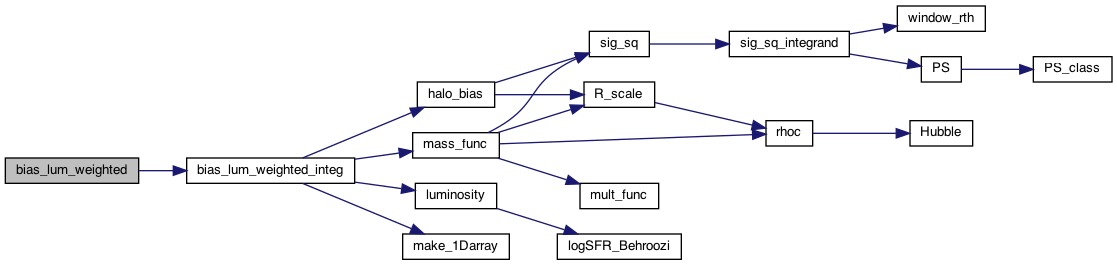

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bias_lum_weighted_integ()

int bias_lum_weighted_integ	(	unsigned	nd,
		const double *	x,
		void *	p,
		unsigned	fdim,
		double *	fvalue
	)

The integrand function passed to hcubature integrator to compute the un-normalized luminosity-weighted line bias.

Parameters

nd	Input: Dimensionality of the domain of integration
x	Input: integration variable
p	Input: integration parmaeters
fdim	Input: Dimensionality of the integrand function
fvalue	Input: Array of values of the integrand of dimension fdim return the error status

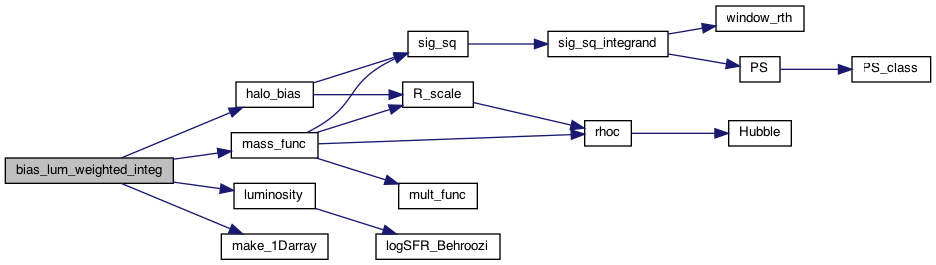

Here is the call graph for this function:

Here is the caller graph for this function:

◆ halo_bias()

void halo_bias	(	struct Cosmology *	Cx,
		double	M,
		double	z,
		long	mode_mf,
		double *	bias_arr
	)

computes the halo biases for three mass functions, press-schecter, Sheth-Tormen, and Tinker mass functions

Parameters

Cx	Input: Cosmology structure
M	Input: halo mass
z	Input: redshift
mode_mf	Input: switch for setting the model of mass function, can be set to PSC, ST, TR
bias_arr	Output: the output array containning linear and quadratic local-in-matter halo biases, and quadratic and cubic tidal biases

Returns: void

Note that for PSC and ST mass functions, same form of the biases can be assumed, with different coefficents. See astro-ph/0006319

Assuming spherical collapse

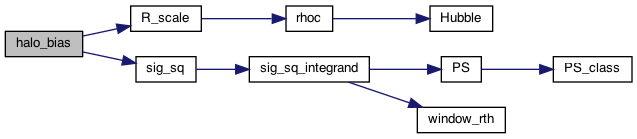

Here is the call graph for this function:

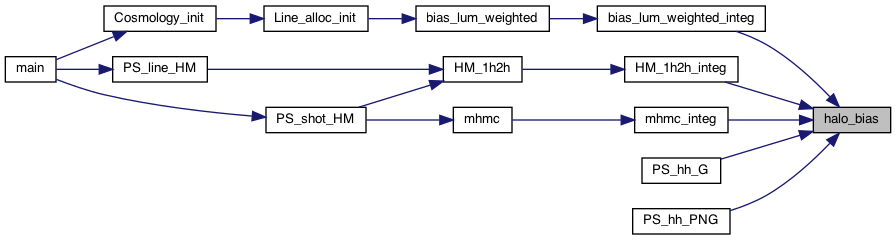

Here is the caller graph for this function:

◆ Line_alloc_init()

struct Line * Line_alloc_init	(	struct Cosmology *	Cx,
		long	line_type,
		size_t	npoints_interp,
		double	M_min,
		long	mode_mf
	)

Allocate the memory and initialize the the line structure.

This structure contains interpolators for computing the luminosity-weighted mass moments and line biases For a given line defined with "line_type" variable, this function first computes the above four quantities for a wide range of redshifts. Next it iniialized 4 interpolators for these quantities, and store them in line structure.

Parameters

Cx	Input: Cosmology structure
line_type	Inpute: name of the line to compute. It can be set to CII, CO10, CO21, CO32, CO43, CO54, CO65
npoints_interp	Input: number of interpolation points
M_min	Input: minimum halo mass for mass integrals
mode_mf	Inpute: theoretical model of halo mass function to use. It can be set to sheth-Tormen (ST), Tinker (TR) or Press-Schecter (PSC)

Returns: the total clustering line power spectrum, including the 1- and 2-halo term

CII

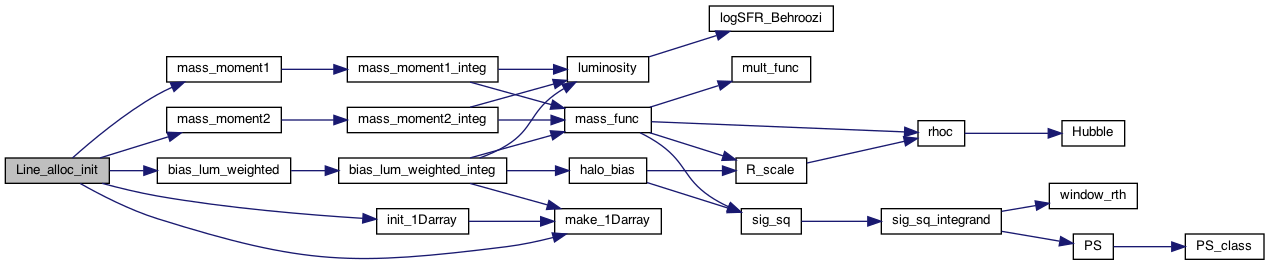

Here is the call graph for this function:

Here is the caller graph for this function:

◆ line_bias()

void line_bias	(	struct Line *	Lx,
		double	z,
		double *	result
	)

Compute the linear and quadratic line biases, accounting ffor the normalization w.r.t.

the first mass moment

Parameters

Lx	Input: Pointer to line structure
z	Input: Redshift
result	Input: a pointer to an array containing the results of b1_line and b2_line

Returns: void

Here is the call graph for this function:

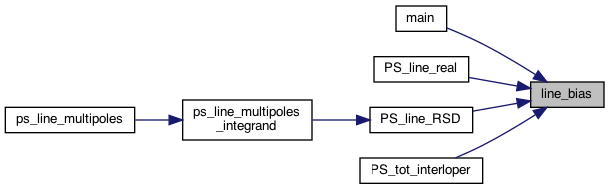

Here is the caller graph for this function:

◆ Line_evaluate()

int Line_evaluate	(	struct Line *	Lx,
		double *	zz,
		double *	res
	)

Allocate the memory and initialize the the line structure.

This structure contains interpolators for computing the luminosity-weighted mass moments and line biases For a given line defined with "line_type" variable, this function first computes the above four quantities for a wide range of redshifts. Next it iniialized 4 interpolators for these quantities, and store them in line structure.

Parameters

Lx	Input: Pointer to the line structure
zz	Input: this is an array with 4 elements to determine which of the 4 interpolators should be evaluated. If any of the elements are set to DO_NOT_EVALUATE, the quantitiy corresponding to that index is not computed. O If any of the elements is set to z, the corresponding quantity would be evaluated at that redshift
res	Output: an array containing the results. The number of elements of this array depends on how the zz array is set.

Returns: the error status

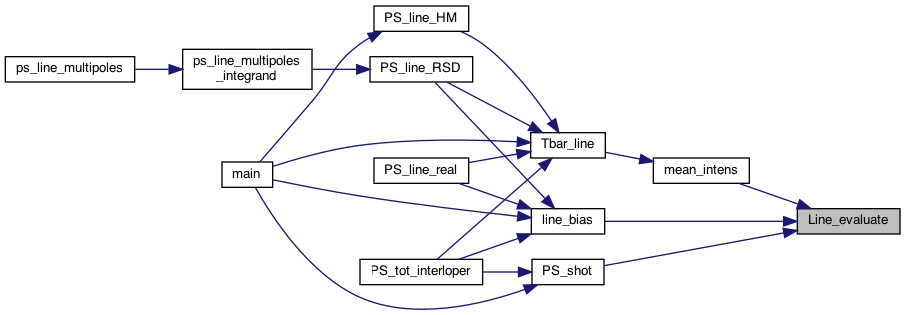

Here is the caller graph for this function:

◆ Line_free()

int Line_free ( struct Line * Lx )

Free the line structure.

Parameters

Lx	Input: Pointer to line structure

Returns: the error status

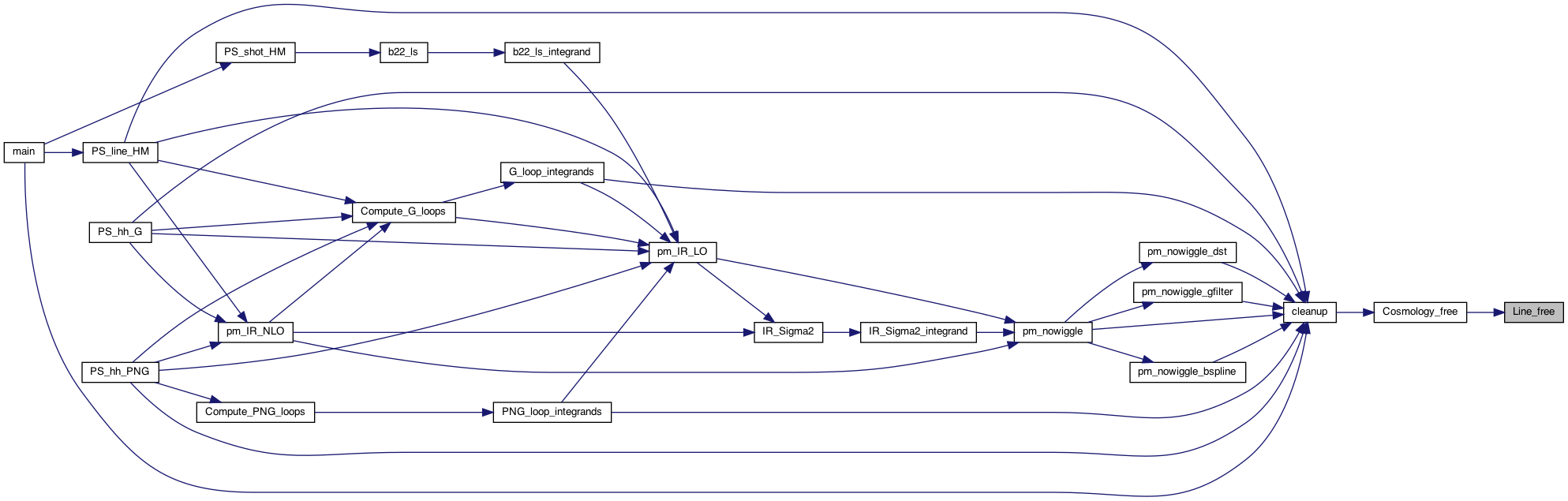

Here is the caller graph for this function:

◆ logSFR_alloc_init()

int logSFR_alloc_init ( )

Allocate memory and initialize the 2d interpolator for the star formation rate of Behroozi et al 2013 as a function of halo mass and redshift.

Returns: the error status

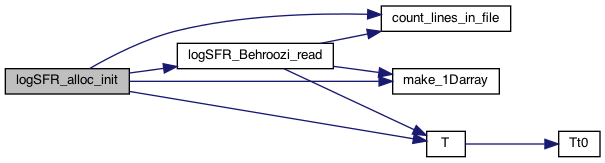

Here is the call graph for this function:

Here is the caller graph for this function:

◆ logSFR_Behroozi()

double logSFR_Behroozi	(	double	logM,
		double	z
	)

Evaluate the SFR interpolator object for a given value of mass and redshift.

Parameters

logM	Input: log10 of halo mass
z	Input: redshift

Returns: log10SFR

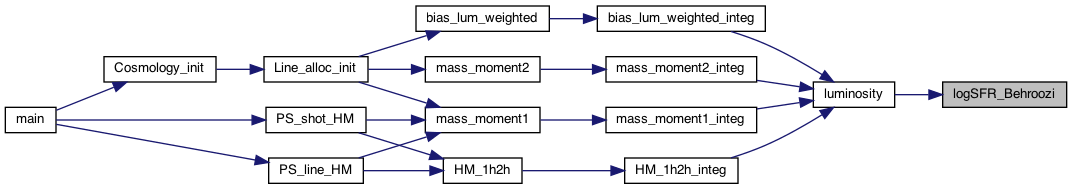

Here is the caller graph for this function:

◆ logSFR_Behroozi_read()

void logSFR_Behroozi_read	(	double *	z_arr,
		double *	logM_arr,
		double *	log10SFR
	)

Read in the file for the star formation rate byy Behroozi et al 2013.

Parameters

z_arr	Output: pointer to an array of redshifts read from the file
logM_arr	Output: pointer to an array of halo masses read from the file
log10SFR	Output: pointer to an array of SFR read from the file

Returns: void

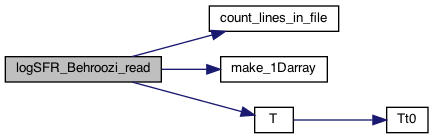

Here is the call graph for this function:

Here is the caller graph for this function:

◆ luminosity()

double luminosity	(	double	M,
		double	z,
		long	mode_lum
	)

Compute the line specific luminosity in unit of solar luminosity For CO ladder, I am using the fits in Table 4 of Kamenetzky et al.

arXiv:1508.05102, while for CII we use Silva et al arXiv:1410.4808

Parameters

M	Input: halo mass
z	Input: redshift
mode_lum	Inpute: which luminosity model, basically which line considered

Returns: line luminosity

a = 1.37 Charilli

b = -1.74

in unit of K km/s pc^2

in unit of L_sun

Here is the call graph for this function:

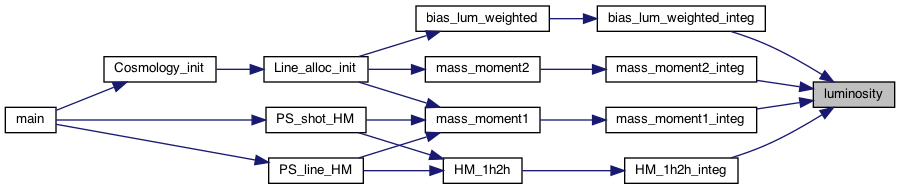

Here is the caller graph for this function:

◆ mass_func()

double mass_func	(	struct Cosmology *	Cx,
		double	M,
		double	z,
		long	mode_mf
	)

Compute the halo mass function for Press-Schechter, Sheth-Tormen and Tinker models see Pillepich et al arxiv: 0811.4176 for the expressions.

Parameters

Cx	Input: Cosmology structure
M	Input: Halo mass function
z	Input: redshift
mode_mf	Input: switch for setting the model of mass function, can be set to PSC, ST, TR

Returns: the halo mass function in unit of halos per Mpc^3 per solar mass, compared at z=0 with Murray etal https://arxiv.org/abs/1306.5140

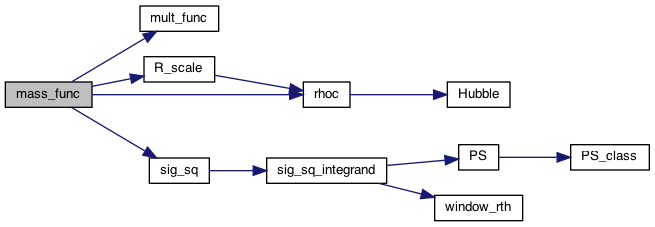

Here is the call graph for this function:

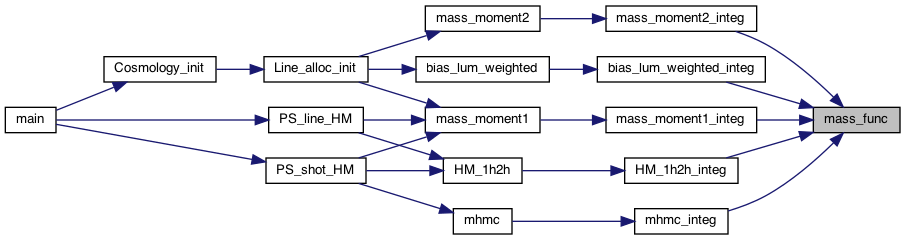

Here is the caller graph for this function:

◆ mass_func_sims()

double mass_func_sims	(	struct Cosmology *	Cx,
		double	M,
		double	z,
		long	mode_mf
	)

Read in the measured mass function of Hidden-valey sims and build an interpolator for HMF(M) for a fixed redshift.

Parameters

Cx	Input: Cosmology structure
M	Input: halo mass
z	Input: redshift
mode_mf	Input: switch for setting the model of mass function, can be set to PSC, ST, TR

Returns: the interpolated measured halo mass function
M in unit of M_sun and HMF in unit of #-of-halos/Mpc^3/M_sun

not to be used at z other than 2. This function is for testing purposes only. We test the theoretical predictions at z=2 if ST MF or measured MF are used.

Here is the call graph for this function:

◆ mass_moment1()

double mass_moment1	(	struct Cosmology *	Cx,
		double	z,
		double	M_min,
		long	mode_mf,
		long	mode_lum
	)

Compute the first luminosity moment.

Parameters

Cx	Input: pointer to cosmology structure
z	Input: redshift
M_min	Input: minimum halo mass
mode_mf	Input: model of halo mass function to consider, PSC, ST, TR
mode_lum	Inpute: which luminosity model, basically which line considered

Returns: the first mass moment
in unit of M_sun/Mpc^3

In units of solar mass;

In units of solar mass

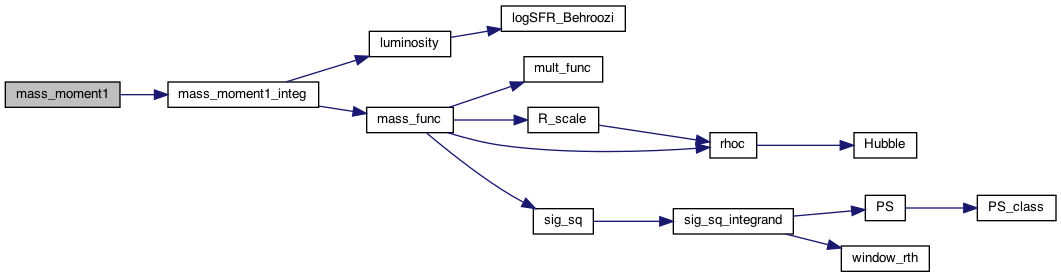

Here is the call graph for this function:

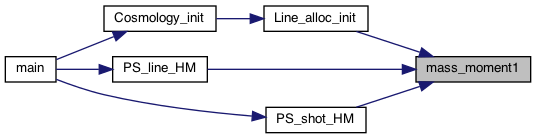

Here is the caller graph for this function:

◆ mass_moment1_integ()

int mass_moment1_integ	(	unsigned	nd,
		const double *	x,
		void *	p,
		unsigned	fdim,
		double *	fvalue
	)

The integrand function passed to hcubature integrator to compute the first moment of line luminosity.

Parameters

nd	Input: Dimensionality of the domain of integration
x	Input: integration variable
p	Input: integration parmaeters
fdim	Input: Dimensionality of the integrand function
fvalue	Input: Array of values of the integrand of dimension fdim return the error status

Here is the call graph for this function:

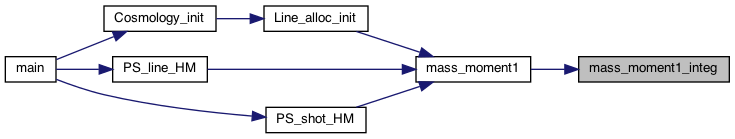

Here is the caller graph for this function:

◆ mass_moment2()

double mass_moment2	(	struct Cosmology *	Cx,
		double	z,
		double	M_min,
		long	mode_mf,
		long	mode_lum
	)

Compute the second luminosity moment.

Parameters

Cx	Input: pointer to cosmology structure
z	Input: redshift
M_min	Input: minimum halo mass
mode_mf	Input: model of halo mass function to consider, PSC, ST, TR
mode_lum	Inpute: which luminosity model, basically which line considered

Returns: the second lum moment
in unit of M_sun/Mpc^3

In units of solar mass;

In units of solar mass

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mass_moment2_integ()

int mass_moment2_integ	(	unsigned	nd,
		const double *	x,
		void *	p,
		unsigned	fdim,
		double *	fvalue
	)

The integrand function passed to hcubature integrator to compute the second moment of line luminosity.

Parameters

nd	Input: Dimensionality of the domain of integration
x	Input: integration variable
p	Input: integration parmaeters
fdim	Input: Dimensionality of the integrand function
fvalue	Input: Array of values of the integrand of dimension fdim return the error status

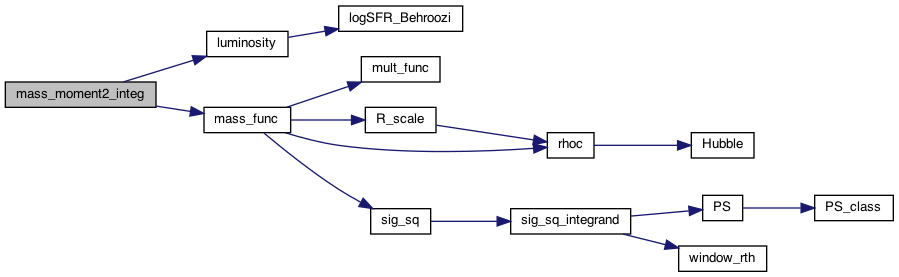

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mean_intens()

double mean_intens	(	struct Cosmology *	Cx,
		size_t	line_id,
		double	z
	)

Compute the line mean intensity in unit of erg Mpc^-2 Sr^-1.

Parameters

Cx	Input: Pointer to cosmology structure
line_id	Inpute: id of line of interest, an integer value
z	Input: Redshift

Returns: the line mean intensity

Note: nu_J is the rest-frame emission frequency related to the observed frequency as nu_obs = nu_J/(1+z_J) For a CO transition from J-> J-1, the rest-frame frequency is nu_J = J nu_CO where nu_Co = 115 GHz.

in unit of erg/s

Here is the call graph for this function:

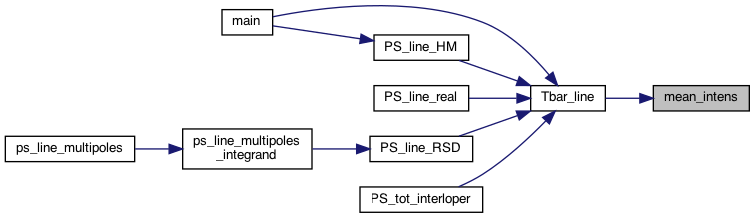

Here is the caller graph for this function:

◆ mult_func()

double mult_func	(	double	sigma,
		long	mode_mf
	)

Compute the multiplicity function needed to compute the halo mass function Three models are implemented: Press-Schechter, Sheth-Tormen and Tinker see Pillepich et al arxiv: 0811.4176 for the expressions.

Parameters

sigma	Input: variance of matter fluctuations
mode_mf	Input: switch for setting the model of mass function, can be set to PSC, ST, TR

Returns: the multiplicity function

In Barkana & Loeb Rev a = 0.75

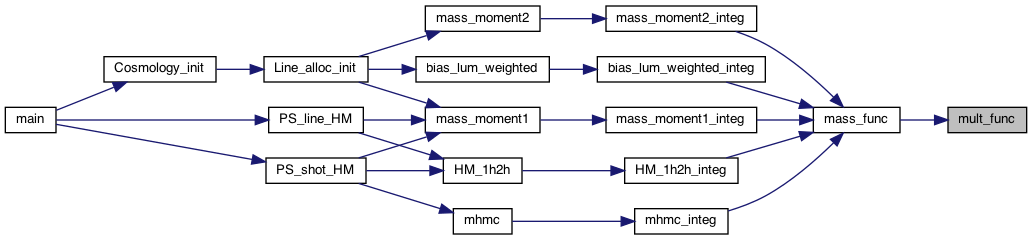

Here is the caller graph for this function:

◆ p_sig_shot()

double p_sig_shot ( double scatter )

Compute the scatter in shot noise due to scatter in luminosity-halo mass relation, assume log-normal scatter ala Keating Note that we set f_duty =1 unlike other LIM paper (ex.

Lidz et al 2011).

Parameters

scatter Input: variance of the log-scatter

Returns: the scatter coeff of shot

Here is the call graph for this function:

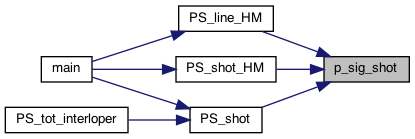

Here is the caller graph for this function:

◆ p_sig_shot_integrand()

double p_sig_shot_integrand	(	double	x,
		void *	par
	)

The integrand function passed to qags integrator to compute the scatter in shot ala Keating 2016.

Parameters

x	Input: integration variable
par	Input: integration parmaeters

Returns: value of the integrand

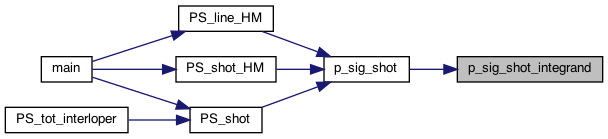

Here is the caller graph for this function:

◆ p_sig_Tbar()

double p_sig_Tbar ( double scatter )

Compute the scatter in Tbar due to scatter in luminosity-halo mass relation, assume log-normal scatter ala Keating Note that we set f_duty =1 unlike other LIM paper (ex.

Lidz et al 2011).

Parameters

scatter Input: variance of the log-scatter

Returns: the scatter coeff of Tbar

Here is the call graph for this function:

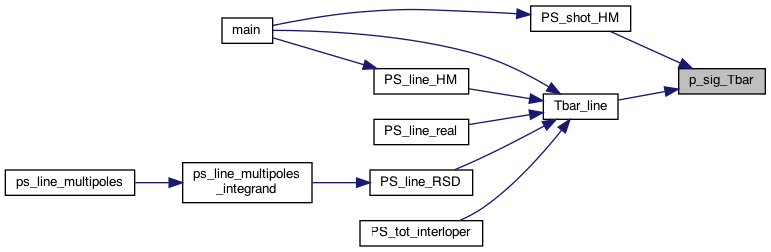

Here is the caller graph for this function:

◆ p_sig_Tbar_integrand()

double p_sig_Tbar_integrand	(	double	x,
		void *	par
	)

The integrand function passed to qags integrator to compute the scatter in Tbar ala Keating 2016.

Parameters

x	Input: integration variable
par	Input: integration parmaeters

Returns: value of the integrand

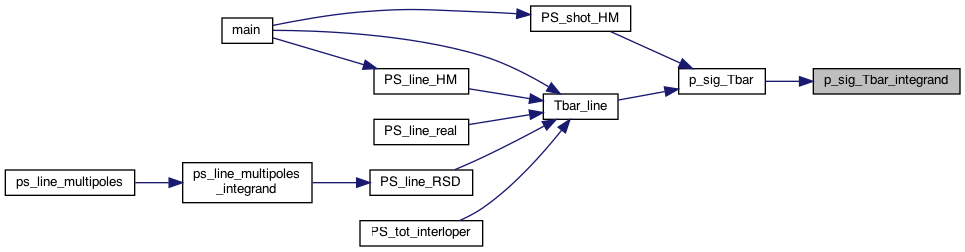

Here is the caller graph for this function:

◆ SFR_Behroozi_free()

int SFR_Behroozi_free ( )

Free the memory allocated to the interpolators of star formation rate by Behroozi et al 2013.

Returns: the error status

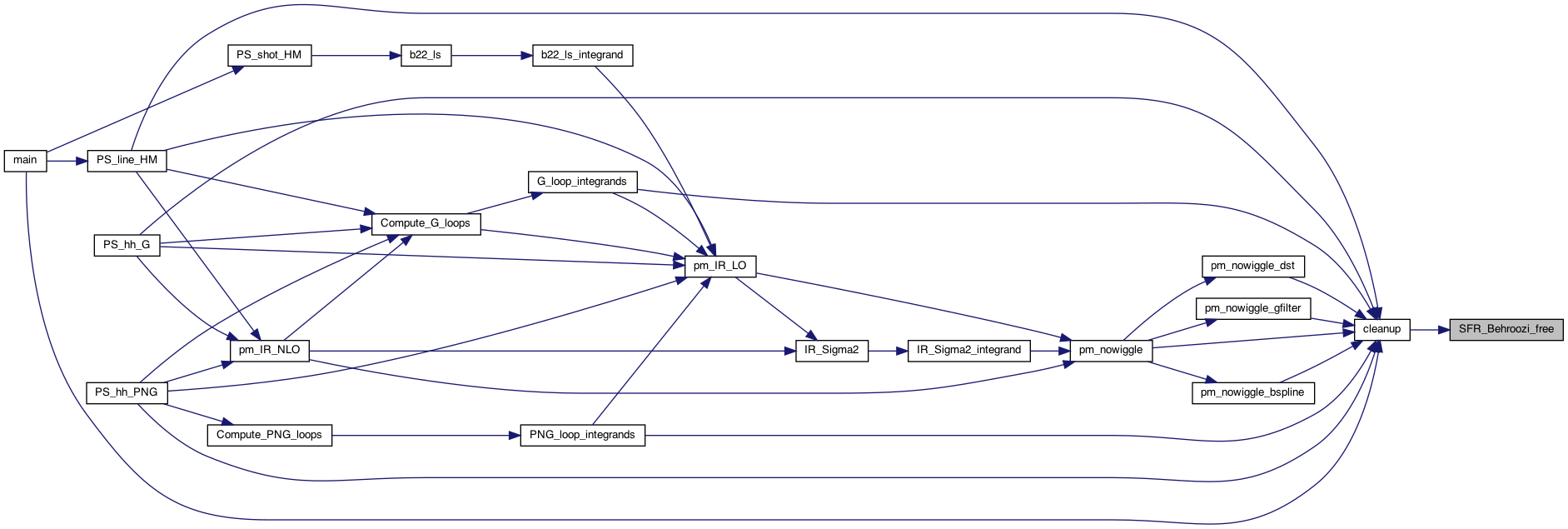

Here is the caller graph for this function:

◆ Tbar_line()

double Tbar_line	(	struct Cosmology *	Cx,
		size_t	line_id,
		double	z
	)

Compute the mean brightness temprature of CO in unit of microK, compared with Pullen et al and Lidz et al 2011.

Parameters

Cx	Input: Pointer to cosmology structure
line_id	Inpute: id of line of interest, an integer value
z	Input: Redshift

Returns: the line mean temprature assuming Rayleigh-Jeans limit

Boltzmann constant in unit of erg K^-1

factor of 10^6 is the conversion factor from K to microK

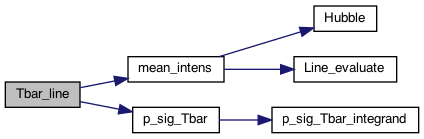

Here is the call graph for this function:

Here is the caller graph for this function:

Functions

Detailed Description

Function Documentation

◆ bias_lum_weighted()

◆ bias_lum_weighted_integ()

◆ halo_bias()

◆ Line_alloc_init()

◆ line_bias()

◆ Line_evaluate()

◆ Line_free()

◆ logSFR_alloc_init()

◆ logSFR_Behroozi()

◆ logSFR_Behroozi_read()

◆ luminosity()

◆ mass_func()

◆ mass_func_sims()

◆ mass_moment1()

◆ mass_moment1_integ()

◆ mass_moment2()

◆ mass_moment2_integ()

◆ mean_intens()

◆ mult_func()

◆ p_sig_shot()

◆ p_sig_shot_integrand()

◆ p_sig_Tbar()

◆ p_sig_Tbar_integrand()

◆ SFR_Behroozi_free()

◆ Tbar_line()
