wnw_split.c File Reference

Documented wiggle-nowiggle split based on 3d Gaussian filter in linear k, and using the Eisentein-Hu wiggle-no wiggle template arXiv:astro-ph/9709112. More...

#include "header.h"

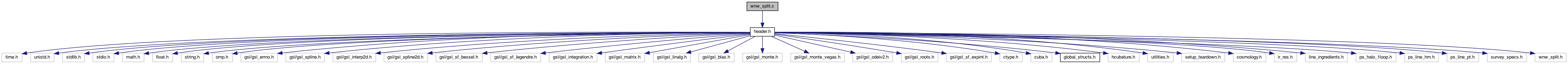

Include dependency graph for wnw_split.c:

Functions
double	pk_Gfilter_nw (struct Cosmology *Cx, double k, double k0)
	Compute the nowiggle component of linear matter power spectrum using 3d Gaussian filter Computing the nowiggle component involves calculating an integral (Eq. More...
double	pk_nw_integrand (double x, void *par)
	Integrand to compute the nowiggle matter power spectrum. More...
double	EH_PS_w (struct Cosmology *Cx, double k, double k0, double pk0)
	Compute the Eisentein-Hu approximate wiggle component of linear matter power spectrum. More...
double	EH_PS_nw (struct Cosmology *Cx, double k, double k0, double pk0)
	Compute the Eisentein-Hu approximate nowiggle component of linear matter power spectrum. More...
double	T0 (struct Cosmology *Cx, double k)
	Compute the no-baryon transfer function given in Eq. More...
double	T (struct Cosmology *Cx, double k)
	Compute the total baryon+CDM transfer function. More...
double	Tt0 (struct Cosmology *Cx, double k, double x1, double x2)
	Compute the function defined in Eq. More...

Detailed Description

Documented wiggle-nowiggle split based on 3d Gaussian filter in linear k, and using the Eisentein-Hu wiggle-no wiggle template arXiv:astro-ph/9709112.

Azadeh Moradinezhad Dizgah, June 16th 2021

The algorithm closely follows Ref. arXiv:1509.02120 by Vlah et al. (described in Appendix A)

The following function will be called from other modules:

1. pk_Gfilter_nw()

Function Documentation

EH_PS_nw()

double EH_PS_nw	(	struct Cosmology *	Cx,
		double	k,
		double	k0,
		double	pk0
	)

Compute the Eisentein-Hu approximate nowiggle component of linear matter power spectrum.

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc
k0	Input: smallest value of k, i.e. the largest scale
pk0	Input: value of the power spectrum at the largest scale

Returns

P_nw(k) in unit of (Mpc)^3

Here is the call graph for this function:

Here is the caller graph for this function:

EH_PS_w()

double EH_PS_w	(	struct Cosmology *	Cx,
		double	k,
		double	k0,
		double	pk0
	)

Compute the Eisentein-Hu approximate wiggle component of linear matter power spectrum.

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc
k0	Input: smallest value of k, i.e. the largest scale
pk0	Input: value of the power spectrum at the largest scale

Returns

P_w(k) in unit of (Mpc)^3

Here is the call graph for this function:

pk_Gfilter_nw()

double pk_Gfilter_nw	(	struct Cosmology *	Cx,
		double	k,
		double	k0
	)

Compute the nowiggle component of linear matter power spectrum using 3d Gaussian filter Computing the nowiggle component involves calculating an integral (Eq.

A3 of Vlah et al) Below, pk_nw_integrand()is the corresponding integrand and pk_Gfilter_nw() is the integrator

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc
k0	Input: smallest value of k, i.e. the largest scale

Returns

broadband component in unit of (Mpc)^3

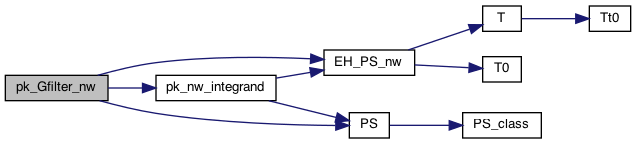

Here is the call graph for this function:

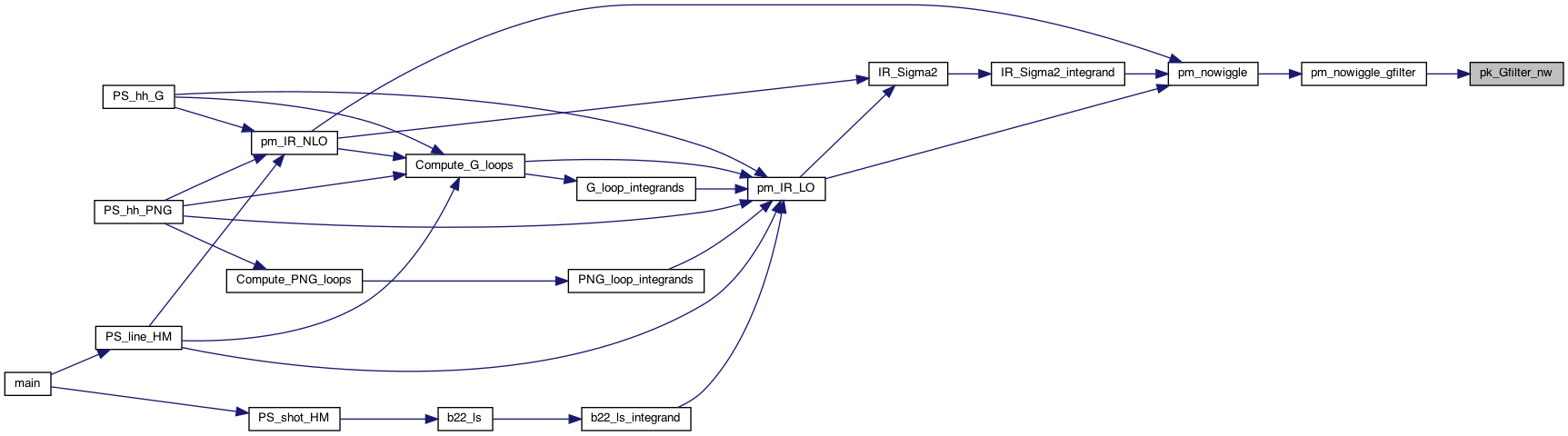

Here is the caller graph for this function:

pk_nw_integrand()

double pk_nw_integrand	(	double	x,
		void *	par
	)

Integrand to compute the nowiggle matter power spectrum.

Parameters

x	Input: integration variable, k-values
par	Input: integration parameters

Returns

integrand to be used in pk_Gfilter_nw() function
integration variable x = logq

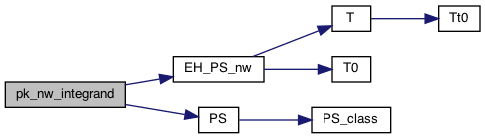

Here is the call graph for this function:

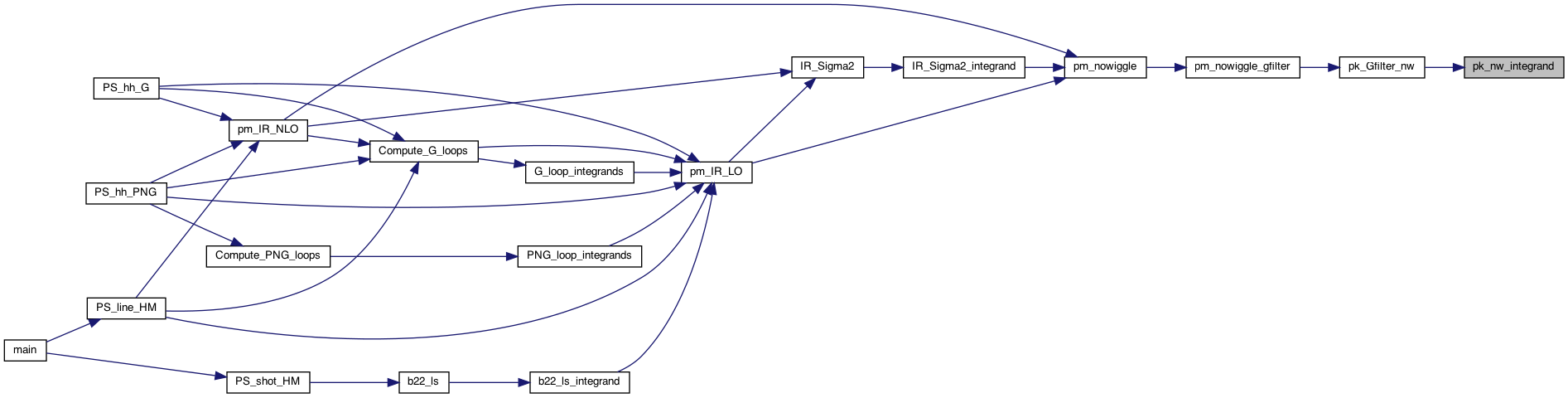

Here is the caller graph for this function:

T()

double T	(	struct Cosmology *	Cx,
		double	k
	)

Compute the total baryon+CDM transfer function.

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc

Returns

value of baryon+cdm transfer function

H0 value devided by the speed of light

approximate sound speed given in Eq. (26) of EH

Eq. 21 of EH ref.

Eq. 17 of EH ref

Here is the call graph for this function:

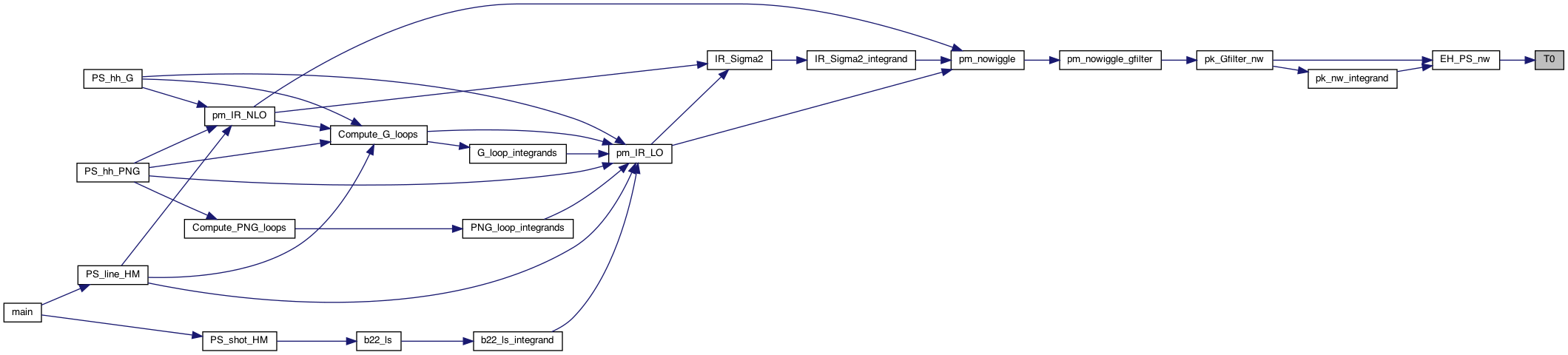

Here is the caller graph for this function:

T0()

double T0	(	struct Cosmology *	Cx,
		double	k
	)

Compute the no-baryon transfer function given in Eq.

29 of EH ref

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc

Returns

value of nor-baryon transfer fit

approximate sound speed given in Eq. (26) of EH

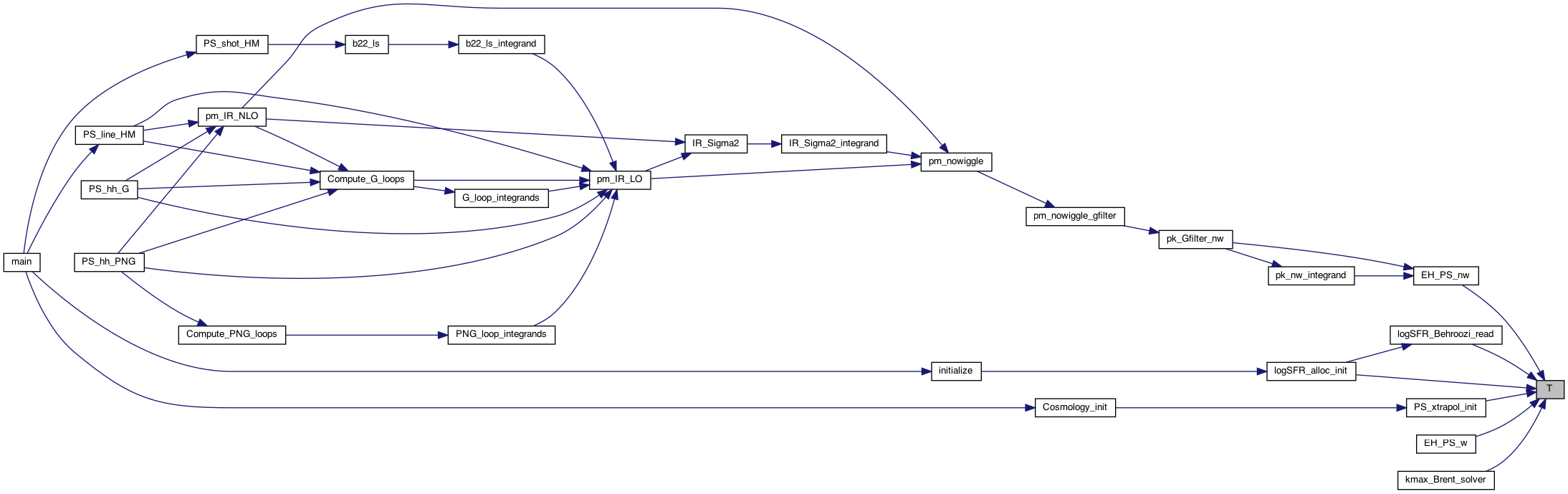

Here is the caller graph for this function:

Tt0()

double Tt0	(	struct Cosmology *	Cx,
		double	k,
		double	x1,
		double	x2
	)

Compute the function defined in Eq.

19 of EH ref, which will be used to compute the fit for CDM transfer function in Eq. 17.

Parameters

Cx	Input: pointer to Cosmology structure
k	Input: wavenumber in unit of 1/Mpc.
x1	Input: betac AM:WHAT WAS THIS VARIABLE???
x2	Input: betac AM:WHAT WAS THIS VARIABLE???

Returns

value of the function x1 = alphac, x2 = betac in Eq. 19.

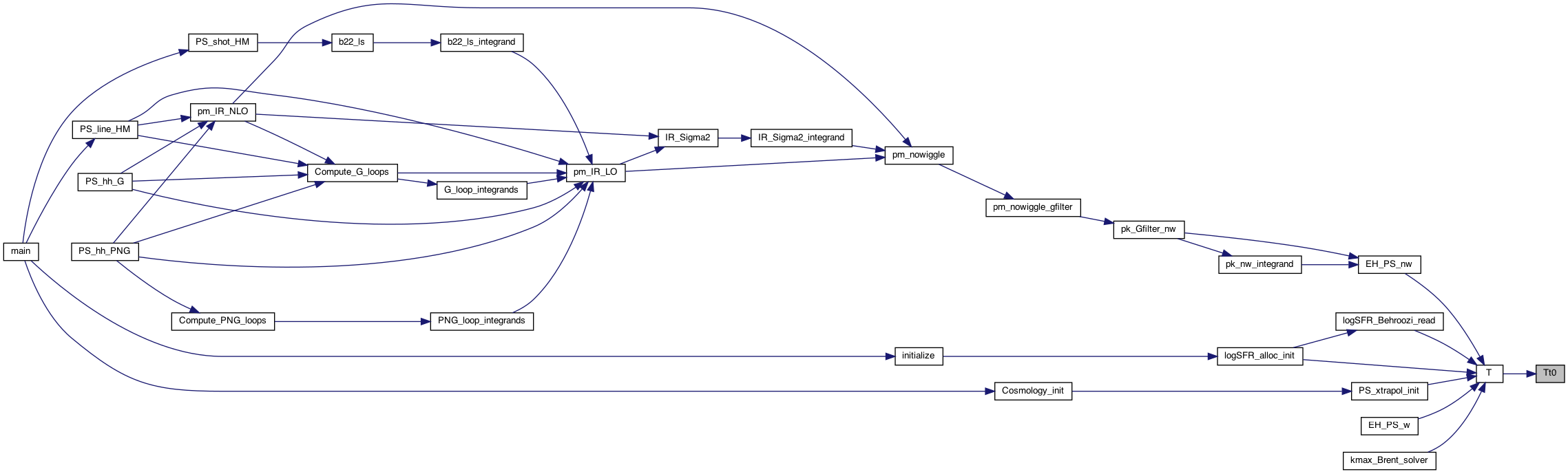

Here is the caller graph for this function:
